Прицел ночной Diar NS1

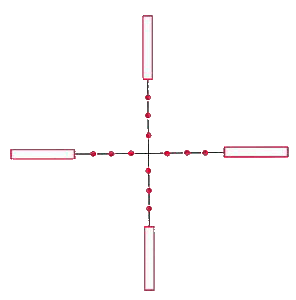

Night sights are meant for installation on any kind of light small arms. Articles are notable for reliability, resistance to external actions and small weight. Strong body of sight is made of aluminum alloy Д16Т. Sight is equipped with IR-illumination which is able to operate in two modes (one of the modes is economy mode). Aiming grid Mil Dot brightness adjuster is easy to use at night.
 |
 |
| Technical characteristics | "Diar NS1" |
|---|---|
| Visible magnification, zoom | 2,5 |
| Angle of viewing field, degree | 10° |
| Distance of exit pupil, mm | 50 |
| Range of magnifier diopter set, diopter, not less than | ±4 |
| Resolving power at 0,2 lx, str/mm, not less than | 32 |
| Vision range, m - under natural night illumination (ЕНО) less than 0,05 lx - with IR-illuminator in complete darkness |
150 70-150 |
| Sight supply voltage, V | 3(2xAA) |
| Electrical optical transducer Gen I | В8-У-С |
| Range of calibration divergence by horizon and vertical note - 0-01 (one thousandth) angle, under which object of 1 m in |
±24' |
| Overall dimensions, mm - Diar NS1 - Diar NS1-01 |
306x80x136 300x80x211 |
| Weight, kg - Diar NS1 - Diar NS1-01 |
1,4 1,5 |
| Clamp bracket - Diar NS1 - Diar NS1-01 |
"Weavew" "Сайга" |
